  • SiSiC Roller

›

SiSiC Roller

Features

Reaction sintered SiC roller is suitable for high temperature sintering belt of daily-used porcelain, sanitary ceramics,building ceramics, glass and magnetic materials.
Contact Us

Product Details

Reaction sintered SiC roller is suitable for high temperature sintering belt of daily-used porcelain, sanitary ceramics,building ceramics, glass and magnetic materials. lts high temperature bearing capacity, long-term use without bendingdeformation, the service life is more than 10 times of aluminaceramic rod.

RBSiC(SiSiC)Roller Load-bearing Capacity List

Size of Section(mm)Wall Thickness(mm)Concentrated Loading(kg.m/L)Concentrated Loading(kg.m/L)Uniformly Distributed Loading(kg.m/L)
B SideH Side
4028697194
45336130260
45317141282
50386167334
50367183366
55436209418
55417230460
60486256512
60467283566
70567405810

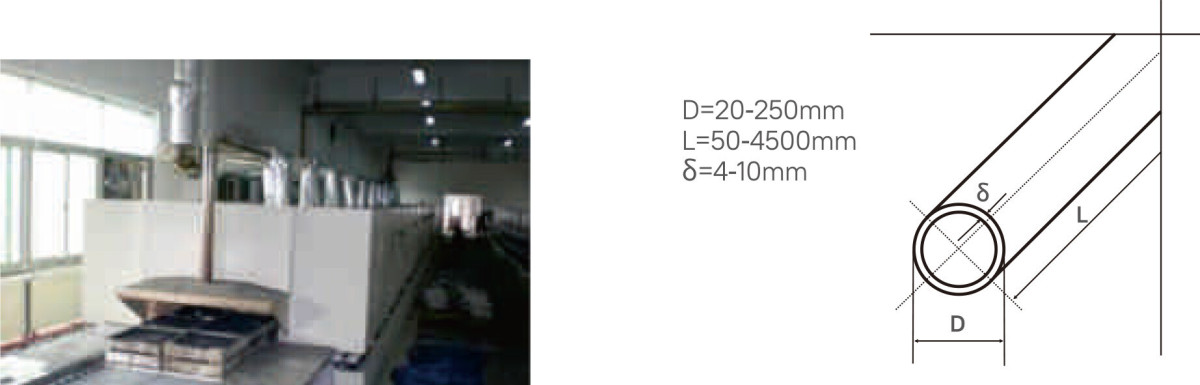

1-sisic 辊棒-1.jpg
