  • Ceramic Fiber Blanket

›

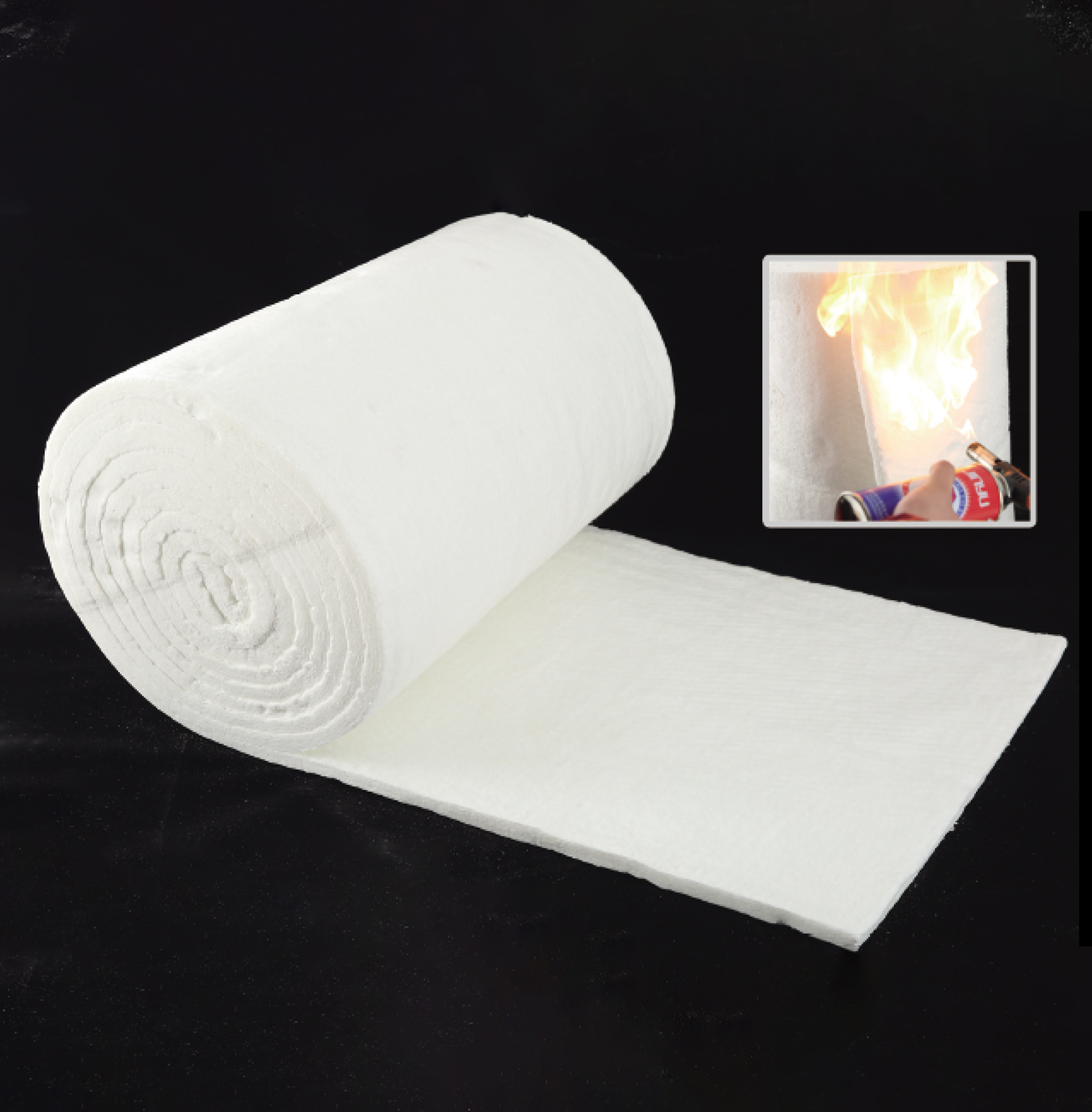

Ceramic Fiber Blanket

Features

Ceramic fiber paper from huibiao consists primarily high purity ceramic fiber and is madethrough a fiber washing process.
Contact Us

Product Details

Product Advantages :

Low thermal conductivity, low heat Storage

Excellent thermal stabilityand thermal shock resistance

Excellenttensile strength

Excellent thermal insulation, fireproof and soundabsorption

Products Description :

Ceramic fiber paper from huibiao consists primarily high purity ceramic fiber and is madethrough a fiber washing process. This process controls the content of unfiberized shots a very minimal level within paper. Our ceramic fiber paper features light weight ,structure unifomity and low thermal conductivily.This ceramic fiber paper can be widely used inconstruction and various types of refractory and sealing applications. lt provides excellent heat resistance and thermal insulation in limited space.


Technica Data

Grade1050STD1260HT1300HP14001430ZA
Working Temperature(℃)950℃1000℃1150℃1260℃1350℃
Density( kg/m3 )96/128/160
permanent change on heating(%)950℃≤24h≤-31000℃≤24h≤-31150℃≤24h≤-31260℃≤24h≤-31350C≤24h≤-3
Heat conductive Coefficient w/(m·k)(128kg/m3)0.15(600℃)0.22(800℃)0.12(600℃)0.20(800℃)0.12(600℃)0.20(800℃)0.12(600℃)0.20(800℃)0.16(600C)0.20(800℃)
Tensile strength thickness25mm)≥0.04≥0.05≥0.04≥0.04≥0.04
Chemical compositionAL2O3(%)38-4041-4345-473839-40
AL2O3 +SiO2(%)≥96≥98≥98--
AL2O3 +SiO2,+ZrO2(%)---9999
ZrO2(%)---5-715-17
Fe2O3(%)≤1.0≤0.8≤0.2≤0.2≤0.2
Na2O+k2O(%)≤0.4≤0.3≤0.2≤0.2≤0.2
CaO+MgO≤0.3≤0.2≤0.2≤0.2≤0.2
SIZE(mm)15000x610/1220x10mm                14400x610/1220x12.5mm7200x610/1220x25mm                7200x610/1220x20mm 5000x610/1220x30mm  4500x610/1220x40mm3600x610/1220x50mm                Other sizes and shapes can be made on request


Remarks: The data above is for reference .The MAX.temp.depends on the working conditions.
